LPJ0011HDNL RJ45 Single Port Right Angle PCB Connector With Magnetics

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: LPJ0011HDNL RJ45 Single Port Right Angle PCB Connector With Magnetics
Brand: LINK-PP
Price: 0.09 USD

Place of Origin : Guangdong,China

Brand Name : LINK-PP

Certification : UL,ROHS,Reach,ISO

Model Number : LPJ0011HDNL

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Packaging Details : 50pcs/tray,1200pcs/carton

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 250000-320000/Month

Specification : LPJ0011HDNL

Part NO : LPJ0011HDNL

Mounting : Side Entry (Right Angle)

Jack Type : RJ45 Female

Indicators : LEDs

Samples : Available

Contact Now

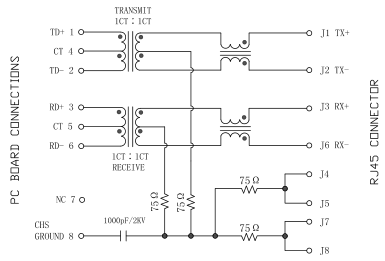

LPJ0011HDNL RJ45 Single Port Right Angle PCB Connector With Magnetics

NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635




	Emitting Color	λp(nm)	VF@IF=20mA	IR @VR=5V
	Green	570	1.8~2.6V	10μA max
	Yellow	585	1.8~2.6V	10μA max
