HR913550A / HR913550AE Single Port RJ45 Connector with LEDs LPJ4011FBNL

Name: HR913550A HR913550AE Single Port RJ45 Connector with LEDs LPJ4011FBNL
Brand: LINK-PP
Price: 0.09 USD

Quality HR913550A / HR913550AE Single Port RJ45 Connector with LEDs LPJ4011FBNL wholesale

Brand Name : LINK-PP

Model Number : HR913550A

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 250000-320000/Month

Delivery Time : Stock

Packaging Details : 50pcs/tray,1200pcs/carton

Spec : HR913550A / HR913550AE

Mass Production : LPJ4011FBNL

Manufacturer : LINK-PP

Termination : Solder

LEDs : Through Hole

Shielded : Yes

Tab Orientation : Tab Down

Standard : IEEE 802.3 Compatible

Contact Now

HR913550A - Integrated RJ45 Connector with Magnetics Product Parameters

Electrical Specification (@25°C):

1. RoHS Compliant: Yes (PB Free)

2. Isolation: 2250VDC 0.5mA 60sec (UTP Side to Chip Side)

3. OCL: 350uH Minimum @100KHz 100mV with 8mADC

4. Insertion Loss: -1.0dB Maximum @300KHz ~ 100MHz

5. Return Loss:

•-20dB Minimum @ 1MHz ~ 10MHz
•-16dB Minimum @ 10MHz ~ 30MHz
•-12dB Minimum @ 30MHz ~ 60MHz
•-10dB Minimum @ 60MHz ~ 80MHz

6. Common Mode Rejection:

•-30dB Minimum @1MHz ~ 50MHz
•-20dB Minimum @50MHz ~ 150MHz

7. Crosstalk:

•-40dB Minimum @1MHz ~ 30MHz
•-35dB Minimum @30MHz ~ 60MHz

•-30dB Minimum @60MHz ~ 100MHz

General Specification:

Single Port RJ45 Connector with Integrated Magnetics and LED for 10/100Base-T NIC Applications
LINK-PP Part Number	LPJ4011FBNL
Hanrun Part Number	HR913550A / HR913550AE
Application-Lan	ETHERNET(NoN PoE)
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
LED Option	GREEN/YELLOW
Latch	TAB DOWN
Number of Ports	1X1
PCB Mount Angle	SIDE ENTRY
Package Height (mm)	13.40
Package Length (mm)	21.30
Package Width (mm)	15.90
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITHOUT
Speed	10/100 BASE-T
Temperature	0 TO + 85℃

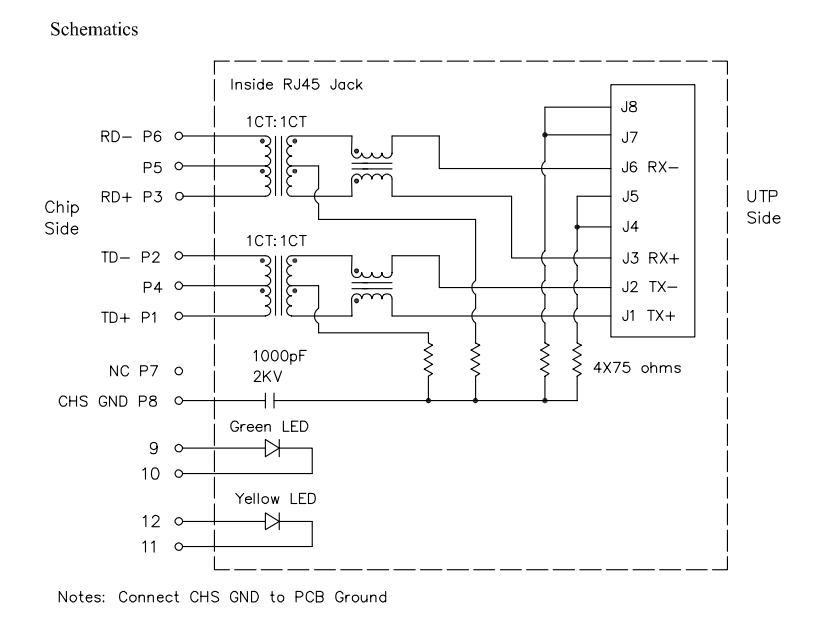

Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Material Specification

Housing: PA66, glass-filled, black, flame retardant rated UL94V-0
Shield: Brass, 0.20 mm thickness, plated with 30 μin (0.76 μm) nickel
Insert: PBT, glass-filled, black, UL94V-0 flame retardant
Contacts: Phosphor bronze, 0.35 mm thickness

Plating (Contact Area): 30 μin gold over 50 μin nickel
Plating (Solder Area): 100 μin tin over 50 μin nickel

Mechanical Performance

Mating Force: Maximum 5 lbs
Unmating Force: Maximum 5 lbs
Plug-to-Jack Retention Force: Minimum 20 lbs
Operating Life: Minimum 750 mating cycles

Operating & Storage Temperature

Operating Temperature Range: 0°C to +85°C
Storage Temperature Range: –40°C to +85°C

HR913550A Datasheet

Product Tags:

HR913550A

HR913550AE

RJ45 Connector with LED

HR913550A / HR913550AE Single Port RJ45 Connector with LEDs LPJ4011FBNL Images
