LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED

Name: LPJ27434AGNL MagJack 10100 BaseT 2X2 RJ45 Yellow amp Green LED
Brand: LINK-PP
Price: 0.11 USD

Quality LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED wholesale

Brand Name : LINK-PP

Model Number : LPJ27434AGNL

Certification : UL,RoHS,Reach,ISO

Place of Origin : GuangDong, China

MOQ : 50/500/1000/60K

Price : $0.11-$24

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 180K/Month

Delivery Time : Stock

Packaging Details : Tray

Part No : LPJ27434AGNL

Specification : LPJ27434 Series

Ethernet : 4x10/100mbps

Mounting : Thru-hole

Termination : Solder

Samples : Available

Contact Now

LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED

4x Magnetic Rj45 Fast Ethernet
LPJ27434AGNL # LINK-PP
R/A Shield Connector
6u,15,30u,50u Gold Plating
2x2 Port Ethernet Port

Electrical Specifications @25℃

2.Turns Ratio:
TX = 1CT∶1CT
RX = 1CT∶1CT

3.Insertion Loss:
0.1～100MHz:-1.0dB Max
4.Return Loss(dB Min):
1～30MHz:-18 30～60MHz:-16
60～100MHz:-12
5.Crosstalk(dB Typ):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.CMR(dB Typ):
1～50MHz:-30 50～150MHz:-20
8.Hi-Pot: 1500Vrms @60Hz
9.Operating Temperature: -40℃～+85℃.

LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED

LINK-PP 2x2 Magjack Rj45 Series Available Part
LPJ27434AWNL	LPJ27434AFNL	LPJ27434CNL
LPJ27434AWNLDJE	LPJ27434DHL	LPJ27434AGNL
LPJ27434BGNL	LPJ27434BFNL	LPJ27434BWNL

Product Tags:

stacked rj45 connectors

rj45 usb connector combo

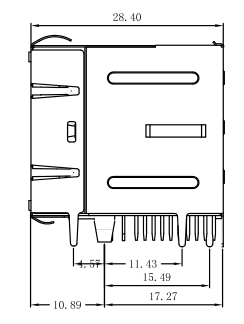

LPJ27434AGNL MagJack 10/100 Base-T, 2X2 RJ45 Yellow & Green LED Images
